Zivid - 2+ R-Series | Industrial 3D & 2D Vision Camera
- Operating temperature: 0 to 45 °C (with full 3D calibration performance).
- Shock resistance: 15 G shock (endures robot emergency stops and rough handling).
- Acceleration resistance: 5 G accelerations (reliable through robot accelerations and vibrations).
- Dimensions: 169 × 124 × 56 mm³ (small and nimble design).
- Weight: < 1 kg (lightweight magnesium housing for minimal robot payload penalty).
- Protection rating: IP65 (dustproof and waterproof for harsh environments).
- 3D HDR: Captures shiny surfaces and difficult materials
- Resolution: 5 MPx (HD full-color sensor for 2D images and 3D point clouds).
ABB OmniCore EyeMotion vision software is required.
- 3D sensor (selected model)
-
Standard 12-month warranty
Accessories such as power adapter, Ethernet cable, mounts, calibration objects and protective housing are not included and are available separately.
OmniCore EyeMotion

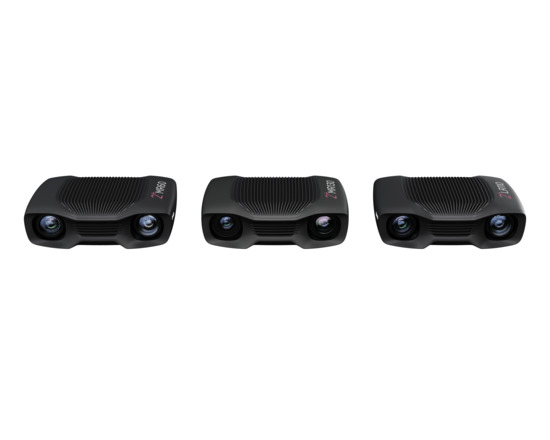

Zivid 2+ R-series | Industrial 3D Vision Cameras
Zivid 2+ R-series is a next-generation family of industrial 3D vision cameras that combines high-quality 3D point clouds and built-in 5-megapixel 2D imaging in a single device, designed to simplify and accelerate robot perception for automation tasks such as bin picking, piece picking, assembly, parcel handling and inspection. The R-series delivers true-to-reality 2D+3D data, capturing challenging shiny and transparent objects in ~150 ms. The lineup includes variants (MR60, MR130, LR110) tailored for robot-mounted or stationary setups with different fields of view and working ranges.
